The vertical spring torsion tester is mainly used for torsion tests of various torsion springs and coiled coil springs. The torque of the spring is measured at a certain angle, or the angle of the spring is measured at a certain torque, and it can also be used for the torsion performance test of other elastic elements and friction mechanisms. It is an ideal testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, tertiary institutions, quality inspection units and other departments.

1, GB/T9370-1999 "technical conditions for torsion test machine"

2, JJG269-2006 "verification regulation of torsion test machine"

3, according to the national standards and ISO, JIS, ASTM, DIN and other international standards for R & D.

The vertical spring torsion tester adopts advanced technology abroad, which is all digital magnification, acquisition and closed loop control, which makes the display stable, high precision and convenient to use. High precision reducer has the characteristics of smooth transmission, low noise, high speed accuracy, wide speed range and long service life.

1. Torsional torque and angle are digital display.

2, LCD screen display, Hanzi menu operation;

3. The machine has the function of peak holding.

4. The machine has the function of overload protection.

5. The machine has the function of stiffness calculation.

6. The machine has the result printing function.

7. The vertical spring torsion tester has the functions of data query and so on.

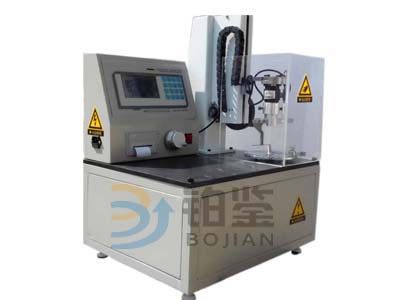

Vertical spring torsion test machine

Maximum test torque 50Nmm 100Nmm 500Nmm 1000Nmm 2000Nmm 5000Nmm

Torque minimum read value 0.001Nmm 0.01Nm 0.1Nmm

Minimum reading value of twist angle 0.1 degree

Spring test machine range 2%-100%

The accuracy of test force is 1%

The accuracy of displacement measurement is 1%

Distance between 0 to 70mm

Test machine level 1 level

Power supply 220V, 50Hz

The size of the test machine is about 500mm*300mm*460mm

The weight (kg) is about 45KG
