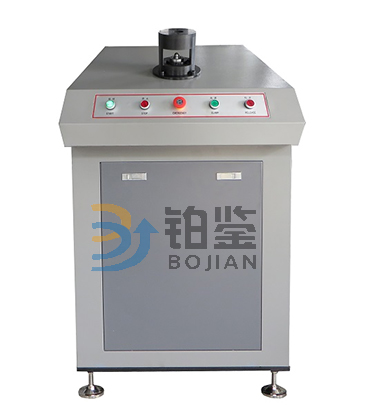

Digital display cupping testing machine is suitable for the evaluation of products related to plate, paint varnish and coating (single or supporting coating) under the standard of experimental method, a pressure test, gradually after deformation, the steel plate, coating cracking resistance or resistance to the performance of the separation of the metal materials, steel, coating by or through;It can also gradually increase the depth of compression to determine the minimum depth of steel plates and coatings that have just cracked or started to disengage from the substrate.

GB/ t9753-2007 "color paint and varnish cup process"

GB/T 4156-2007 metal materials sheet and thin band erikson cup process test

1. The product is the company many years of manufacturing experience and in the original models on the basis of the research and development production of a new generation of products, its main characteristic is the precision of the cup drawing value increased to 0.01 mm, the main test force loading rate control, such as;

2. Handling aspect, has realized the historical breakthrough, we are in the oil cylinder, manual valve torque, on the basis of the improvement for the use of control motor as power, make the automated test process, thus greatly improve the control precision of the machine;

3. The manual hydraulic loading is the mechanical loading of the electric control, and the hydraulic sensor is the wheel and radial sensor, which improves the test precision of the main test force and the fracture accuracy of the control sample.

4. The depth can be set, and it can be completed and reduced to the initial state after the test.

5. Move up and down the button, press the button to go up or down, put down the automatic stop;

6. The button and screen should be installed on the upper right side of the test machine for easy operation;

7. A large modification was made in the appearance, and the original equipment was unwieldy and bulky, and the overall appearance was neat and generous.

1. Maximum test force: 60kN.

2. Measuring range: 2.4kN ~ 60kN.

3. Accuracy of test: the accuracy of cup process was + 0.01mm.

4. Substrate thickness: 0.2-2mm.

5. Cup process accuracy: 0.01mm.

6. Test speed: 5-100mm/min.

7. Punch mould: S, 20 plus or minus 0.05mm.

8. Sample width: 70-90mm.

9. Inner diameter of pressure die:

10. Internal diameter of the punching die: 27 plus or minus 0.05mm.

11. Test board size: 70*70* (0.2 ~ 2) mm.

12. Punch stroke: no more than 60mm.

13. Clamping piston stroke: no more than 20mm.

14. Hydraulic oil :N46 hydraulic oil.

15. External dimension: 760*700*1100mm.
