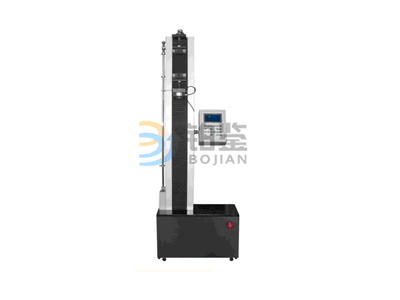

Product name：Bjdl-s5kn cable tension testing machine
Product model：BJDL-S5KN
Product range：2%-100%
Immediate consultation
Online Message
BJDL - S5KN cable tensile testing machine is mainly used in wire and cable, wire and cable with soft polyvinyl chloride (PVC) plastic non-metallic materials and finished products, such as tensile strength, peel strength, tear strength, break elongation and other mechanical properties test.
GB/T2951-2008 test method for mechanical and physical properties of wires and cables.
GB/T 8815-2008 "soft PVC plastics for wire and cable".
GB/T1040-2006 "test of plastic tensile properties"
Maximum test force: | 5000N |
Measurement range: | 2%-100%; |
The resolution in the test: | 0.1N |
The accuracy of test | force is better than that of indication value of + 1% or + 0.5%.
|
Test machine level: | Level 1 or 0.5 |
Displacement resolution: | 0.01mm |
The accuracy of displacement measurement: | + 0.5%; |
Test trip: | 600mm (customizable). |
Pressure plate diameter: | 100mm (customizable). |
Speed range: | 1-500mm/min or 0.01-500mm/min. |
Speed accuracy: | better than the value of + 0.5%. |
Test machine size: | 560*330*1300 mm |
Test machine weight: | 130Kg |
Protection function: | program protection |
Power supply: | 220V, 50Hz |
