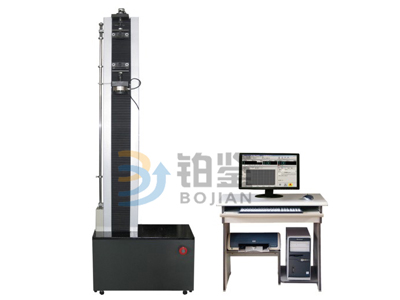

Single arm type microcomputer control electronic universal testing machine is mainly suitable for metal, nonmetal and composite materials tensile, compression, bending, shear, tear, peel, mechanical properties such as compressive strength, bending test.

The single arm microcomputer controlled electronic universal testing machine is manufactured according to the standard of GB / T 16491-2008 electronic universal testing machine.

The test machine is checked and checked according to GB/T12160-2002's "uniaxial test extensometer" and GB/T16825-1997 "tensile testing machine".

1, style: single arm type (three guiding column, one ball screw).

2, the test force is 5000N, which is 1, 2, 5, 10, four.

3, range: 2%-100%; (Universal); 0.5%-100% (Gao Pei).

4, accuracy of test force; + 1% (general matching); + 0.5% (Gao Pei).

5. The accuracy of the test force; 0.1N

6, test machine level: 1 level (general matching); 0.5 level (Gao Pei).

7. Displacement resolution: 0.01mm;

8. The accuracy of displacement measurement: 0.5%;

9, stretching stroke: 600mm (customized according to customer needs).

10, microcomputer control electronic universal testing machine compression stroke: 600mm (customized according to customer needs).

11, displacement speed control range: 0.01mm/min to 300mm/min (general matching); 0.01mm/min to 500mm/min (Gao Pei).

12. The precision of the displacement speed control: 0.5%;

Size 13, test machine: about 530mm "260mm" 1550mm

14, test machine weight: about 120KG

15, appearance: should meet the requirements of GB/T2611

16, complete set: meet the standard requirements

17, protection function: the tester has overload protection function.

18, the power supply of single arm microcomputer controlled electronic universal testing machine is 220V, 50Hz.
