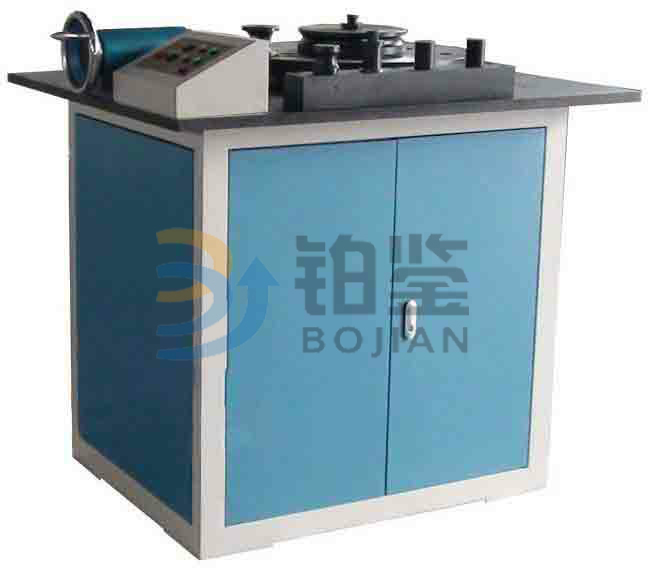

BJGWQ-50 steel tube bending test machine is a special equipment for plane bending test of metal pipe.The equipment is a new product developed in accordance with GB/ t244-2008 ISO8491:1998(E) metal tube bending test method.This product is widely used in metal tube plant and pipeline enterprise to inspect the bending performance of metal pipe.The equipment is reliable, easy to use, reliable and long service life. It is the most perfect bending tester.

GB/ t244-2008 metal tube bending test method.

Test principle:

A full - section metal tube is bent around a specified radius and a bent bent with cao until the relevant standard is reached.

Test steps:

1. Bend the tube specimen without filling, and ensure that the bending deformation section of the specimen is in close contact with the metal tube, until the bending Angle is reached.

2. In the bending test of the welded pipe, the position of the weld relative to the bending plane should meet the requirements of the relevant product standards.If no specific requirements are specified, the weld shall be placed in the position of 90 degrees (i.e., bending neutral line) with the bending plane.

3. The description of bending test results shall be based on the requirements of relevant product standards.When the product standard is not specified, without the use of magnifying glass, if there is no crack, it should be qualified.

1、型號：                             BJGWQ-50

2、最大彎曲鋼管直徑         50

3、正彎角度設定                 180°

4、反彎角度設定                 180°

5、工作盤轉速                     ≤20°/S

6、工作盤直徑         680

7、功率(kW)                         1.5

8、外觀：                              應符合GB/T2611要求

9、成套性：                          符合標準要求

10、供電電源：                    220V，50Hz

11、主機外形尺寸 1500×800×2100

12、重量                     約1000
