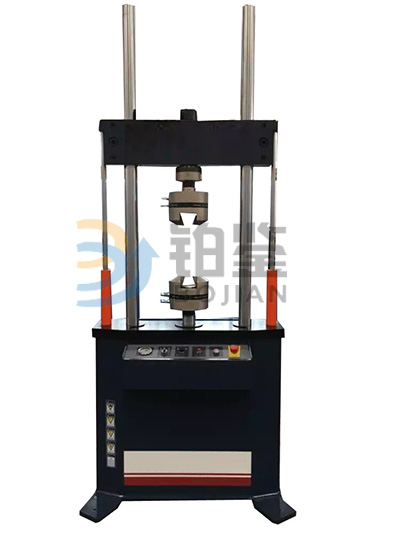

BJWPW - 500 - d electro-hydraulic servo steel strand fatigue testing machine is widely used in steel strand, and locks dynamic mechanics performance test, can also be used for a variety of materials and parts of tensile, compression, low and high cycle fatigue test.

It can be used for crack propagation fracture mechanics of various materials and other kinds of mechanical tests by configuring corresponding accessories and test software.

High and low temperature mechanical test can be carried out in high and low temperature tank.

Electro hydraulic servo steel cable fatigue testing machine is our company's latest development of a series of new products.

This series of products are easy to use, high precision and good reliability.

Bjwpw-500d electro-hydraulic servo steel cable fatigue testing machine is one of the products of dynamic and dynamic testing machine.

This series of products have the advantages of convenient use, high control precision and good reliability.

This series of machine in the process of development, the development from the international advanced electro-hydraulic servo dynamic testing machine technology, combined with the actual use status of domestic users, using "unitization, modular, standardized" development concept design.

Testing machine of key parts were picked from the international and domestic famous brands of the same kind of product or finished in adopting international advanced technology and greatly improve the stability and reliability of the system, and the testing machine the overall performance of the technical level with the international advanced products.

GB/T14370-2015 "anchor gear, fixtures and connectors for prestressed bars"

JT/T 329.2-1997 "anchor and connector test method and inspection rules for prestressed steel cable in highway Bridges"

JT/T 329-2010: anchors, fixtures and connectors for prestressed steel cable for highway Bridges

Technical conditions of anchorage, fixture and connector for railway engineering prestressed reinforcement bars

JGJ85-2002 "technical specification for anchorage of prestressed tendons"

1 host frame (including actuator body) : self - control, imported sealing parts, 1 set;

2 servo valve: ff106-95, 21MPa 1 set;

3 sensor: 1000kN tension dynamic load sensor, overload capacity 150%, accuracy 0.05% 1 set;

4LVDT displacement sensor: FXG, plus or minus 75mm, accuracy 0.05%,1 set;

5 oil source, 1 set: rated pressure 21MPa, rated flow 100L/min.

(a) motor (ABB),45kW;

(b) high pressure pump 100L/min, 32MPa;

(c) overflow valve (new);

(d) quick unloading valve group (self-restraint);

(e) cooler (domestic);

(f) filter oil filter (one of the coarse filters, one of the fine filters) (domestic, wenzhou dawn);

(g) accumulator (domestic);

(h) electrical contact thermometer, air filter, liquid level relay, pressure gauge and other accessories (domestic);

(I) tank body and other (homemade).

6 controller :(self-made), 1 set (including connectors);

7. Pipeline system (PARKER);

Industrial control computer: yan hua;

9 printer: HP laser A4(HP);

10 software (homemade);

11 control cabinet (homemade);

1. The maximum static test force: plus or minus 500kN, divided by 1 and 10 attenuation multiples, and the accuracy of the display value is 20%, plus or minus 1%.

2. Maximum dynamic test force: plus or minus 500kN, the amplitude fluctuation is not greater than that of each of the two FS.

The maximum amplitude of the actuator is: plus or minus 150mm, and the precision of the indicator is 20%, plus or minus 0.5%FS.

Frequency range: 0.1-25hz.

Main test waveform: supported by controller.

6. Specification of constant pressure servo pump station: 100L/min, 45kW motor power;

7 table size: 1200*800mm;

Maximum test space: 1000mm.
