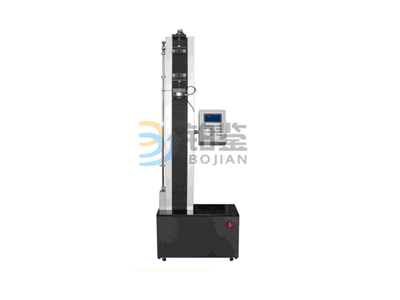

It adopts the integrated structure of precision motor, speed regulation system, synchronous belt and deceleration mechanism, and drives the screw pair drive to load test force after deceleration. The electrical part includes load measurement system and deformation measurement system. All control parameters and measurement results can be displayed on large screen LCD in real time, and have overload protection function.

The woven bag tension test machine is suitable for the mechanical properties test of rubber and rubber products, plastic (PVC), nonwovens, plastic film, plastic film, product, PVC pipe, paper board, woven bag, packing belt, adhesive tape, adhesive and other products, such as tensile, tear, elongation, peeling and so on. According to the result, it has functions of curve display, query and print.

According to the standard: GB/T 8946-98, "plastic woven bags", GB/T 8947-98 "composite plastic woven bags". GB/T 1039 "general principles for testing methods of mechanical properties of plastics", GB/T 8088-98 "soft composite plastic material peel test methods".

The main technical parameter BJDB-S2000N

Maximum test force 2000N

Resolution 0.1N

The relative error of the indication is + 1%

Test space 0-500mm for braided bag tension test machine

Cross beam moving speed 1-500mm/min

Displacement measurement stroke 500mm

Displacement resolution 0.01mm

Displacement speed control precision of + 1%

Test machine level 1 level

Woven bag tensile testing machine, liquid crystal display content, test force, displacement, peak value, running state, running speed and so on.

The weight of the host is about 130Kg

The size of the test machine is about 530 x 265 x 1580 mm

The appearance should meet the requirements of GB/T2611

Compliance with standard requirements

Protection function test machine has overload protection function

Power supply AC 220V, 50Hz
