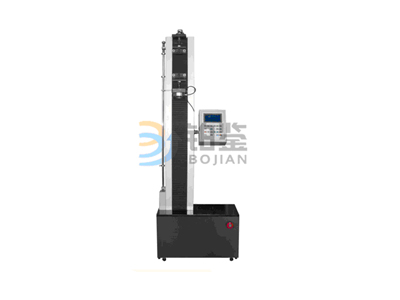

The BJDS-5KN packing belt tension tester is driven by the integrated structure such as precision motor, speed control system, synchronous belt deceleration mechanism, etc.The electrical part consists of load measuring system and deformation measurement system.All control parameters and measurement results can be displayed in real time on large LCD, and have the function of overload protection.

The packaging belt tensile testing machine is suitable for use in rubber and rubber products, wire and cable with plastic (PVC), nonwoven cloth, plastic film, products, PVC pipes, woven bags, paper, cardboard, packing tape, adhesive tape, adhesive products such as mechanical properties such as tensile, tear, elongation, peel test;Able to save test data and results, with curve display, query, printing and other functions.

According to standard: QB/T 3811-1999 "plastic packaging belt", GB/T 8947-98 "composite plastic woven bag", GB/T 1040 "determination of plastic tensile properties", GB/T 2918 "plastic test state regulation and standard environment".

Main technical parameters 2000N 3000N 5000N

Maximum test force 2000N 3000N 5000N

Minimum read value 0.1N

The relative error of the indication is + 1%

Test space 0-500mm

Cross beam moving speed 1-500mm/min

Displacement measurement stroke 500mm (customized according to requirements).

Displacement resolution 0.01mm

Displacement speed control precision of + 1%

Test machine level 1 level

Packing belt tensile testing machine, liquid crystal display content, test force, displacement, peak value, running state, running speed and so on.

The weight of the host is about 130Kg

The size of the test machine is about 530 x 265 x 1580 mm

The appearance should meet the requirements of GB/T2611

Compliance with standard requirements

Protection function test machine has overload protection function

Power supply AC 220V, 50Hz
