It is driven by the integrated structure such as precision motor, speed control system and synchronous belt deceleration mechanism, and the test load is carried out after the deceleration.The electrical part consists of load measuring system and deformation measurement system.All control parameters and measurement results can be displayed in real time on large LCD, and have the function of overload protection.

This machine is suitable for the rubber and rubber products, wire and cable with plastic (PVC), nonwoven cloth, plastic film, products, paper, cardboard, PVC pipes, woven bag, packing tape, adhesive tape, adhesive products such as mechanical properties such as tensile, tear, elongation, peel test;Able to save test data and results, with curve display, query, printing and other functions.

GB/T 8946-98 "plastic woven bag"

GB/T 8947-98 "composite plastic woven bag"

GB/T 1039 general principles for testing methods of mechanical properties of plastics.

GB/T 8088-98 "test method for soft composite plastic peel".

Automatic calibration: the system can realize the calibration of indicator accuracy automatically;

The force value corresponding to the displacement can be calculated automatically.

Easy to operate: Chinese menu operation, intuitive and clear.

Fully functional: able to stretch, elongate, tear, peel and other experiments.

Dynamic curve: the dynamic curve can be displayed in the test process of paper tensile test machine.

Automatic display: during the whole experiment, the test force, peak and test state are displayed in real time;

Automatic control: when the test parameters are entered, the test process can be completed automatically.

Breaking judgment: after the sample is broken, the moving beam stops moving automatically;

Limit protection: with mechanical and programmable limit protection function.

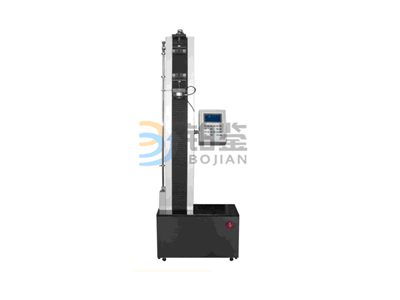

Technical parameters of paper tension test machine:

Model: BJDL-S

The maximum measurable force is 50N 100N 200N 500N 1000N 2000N 5000N.

Force sensor: domestic / imported high-precision force sensor.

Accuracy grade: superior to level 1

Test force test range: 1.0%~100%FS

The precision of force value of paper tension test machine is better than that of 1%

The resolution of the force value: 1/200000

Displacement indication error: less than 0.5% of the indication

Displacement resolution: 0.05um

Deformation indication error: less than 0.5% of the indication value

Test speed range: 1 ~ 500mm/min

The driving way of paper tensile testing machine is stepper motor / servo motor drive screw drive.

Control system: domestic drive / import driver, microcomputer control box.

Test stroke (no fixture): 1000mm (optional)

Volume (W*D*H): 560x320x1800mm

Power and power: AC 220V + 10% 50Hz, 0.75kw

Weight: 150KG

Automatic stop device mechanical and program control
