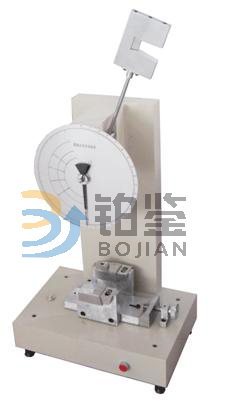

The main technical parameters of the BJCJ-50 series simple support beam impact testing machine are fully in line with ISO 179, GB/T 1043, GB/T 2612, JB/T 8762, GB4742 standard.Various impact tests can be made by replacing different energy shocks and adjusting clamps.

GB/T 1043-1993 rigid plastic beam shock test method.

Determination of impact strength of ISO 179-1 plastic - simple support beam.

JB/T 8762-1998 plastic simple support beam impact testing machine.

GB 4742-1984 method for determination of impact toughness of household ceramics.

This machine is a kind of measuring instrument with reasonable structure, beautiful shape, convenient operation and accurate data. It is widely used in hard plastic, fiberglass and reinforced nylon.It can be used as the shock test for the research institutions, colleges and universities, production inspection offices at all levels, and material production plants.

Pendulum energy: 7.5j, 15J, 25J, 50J (with a hammer)

Pendulum moment: 7.5J swing hammer PL=3.866Nm 15J swing hammer PL=7.733Nm.

25J pendulous hammer PL=12.889Nm 50J swing hammer PL=25.777Nm.

Minimum dividing value of dial: 1/100.

Impact velocity: 3.8m/s.

Pendulum Yang Angle: 160 °

Pendulum center to sample center distance: 380mm.

Corner radius: R=1 + 0.1mm.

Edge radius: R=2 + + 0.5mm.

Impact the blade Angle: ° to 30 + l

The distance between the clamping support line :40mm, 60mm, 70mm and 95mm.

Pendulum impact energy loss :0.5%.
