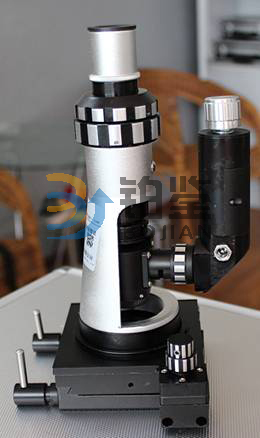

Portable field of metallographic microscope is applicable to field a variety of large-scale workpiece metallographic examination and failure analysis of microscope, it need not cutting sampling, grinding, polishing, directly on the parts so as to ensure the integrity of the workpiece. With magnetic force microscope base absorption, adsorption on the workpiece directly observing the metallographic examination of the organization.Portable metallurgical microscope is suitable for the aviation manufacturing, machinery manufacturing, vehicle manufacturing, boiler and pressure vessel manufacturing and inspection, petrochemical industry, railway, shipbuilding, power plant, power plant, equipment installation, large mould, safety inspection, quality supervision, the physical and chemical laboratory, etc.It can also be widely used in factories and laboratories for casting quality identification, raw material inspection or research and analysis of metallographic organization after material treatment.

· small precision optical structure, the image is clear and stable.

· magnification of 100 x - 400 x, long focus distance field achromatic lens.

·6V, 15WLED lamp lighting, rechargeable lithium battery.

· the gear type XY axis mobile platform ensures that the horizontal motion is not self-propelled.

· special-purpose mechanical break magnetic base, suitable for various workpiece surfaces.

The microscope lens is being placed.

I'm going to multiply it by 100 times minus 400 times.

Eyepiece view 10 x,12.5 x.

Objective lens long focus distance field achromatic difference 10 x, 40 x.

Illumination device aspheric condenser, 6V15WLED lamp.

Packing 475 x 280 x 160 mm

Digital camera 3 million pixels (optional)

Digital interface standard vision interface (optional)

Metallographic analysis software image analysis, image collection fixed times, quantitative calculation, report output (optional)
