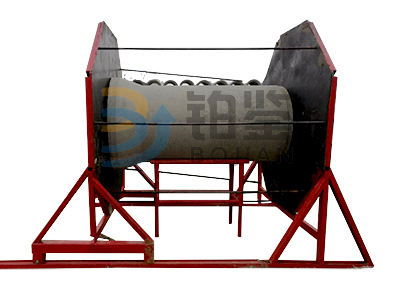

BJHPN - 2000 - mm concrete drainage pipe hydraulic test device is based on national standard "concrete and reinforced concrete drain" (GB/T 11836-99), the concrete and reinforced concrete drain test method (GB/T 16752-2010) and developed, using horizontal structure, mainly is suitable for the concrete and reinforced concrete drain pipe of the internal water pressure test.

Concrete and reinforced concrete drain pipe (GB/T 11836-99)

Test methods for concrete and reinforced concrete drain pipes (GB/T 16752-2010)

Can be customized according to pipe diameter and customer requirements, meet the national standard.

1. The dividing value of pressure gauge: 0.005mpa;

2. Pressure display mode: pressure gauge;

3. Adding water: pumping unit of > 16m;

4. Maximum pressure: 0.16MPa;

5. Fastening method: bolt fastening;

6. Sealing method: rubber plate seal (special mode seal);

7. Applicable drainage pipe size: less than or less than 2000mm;

8. Pressure order: the gasket will be fitted with the test tube and the clamp holder.

Start the pump down until the pressure is specified.

Move the pumping function, then pump the water back into the reservoir.
