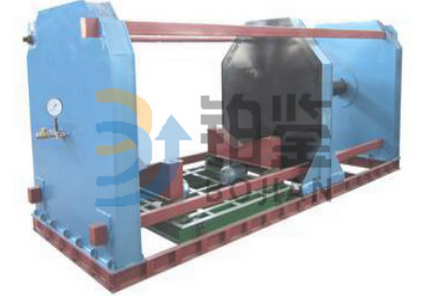

Drainage pipe hydrostatic testing machine is based on national standard "concrete and reinforced concrete drain" (GB/T 11836-99), the concrete and reinforced concrete drain test method (GB/T 16752-2010) and developed, using horizontal structure, mainly is suitable for the concrete and reinforced concrete drain pipe of the internal water pressure test.

Concrete and reinforced concrete drain pipe (GB/T 11836-99)

Test methods for concrete and reinforced concrete drain pipes (GB/T 16752-2010)

It can be customized according to the pipe diameter and customer requirements, and meet the national standards.

1. The pressure gauge dividing value: 0.005 MPa;

2. Pressure display mode: pressure gauge;

3. The method of water: head > 16 m water pump;

4. The maximum pressure: 0.16 MPa;

5. Drainage pipe hydraulic test device fastening ways: hydraulic fastening;

6. Sealing way: rubber seal (special seal);

7. Apply a drain size: Φ 2000 mm or less (customizable);

8. Pressure order: plate test tube pad is good, first add plate holding.

Start the pump, until the specified pressure, water has the best

Pumping function, will pipe water back into the reservoir.
