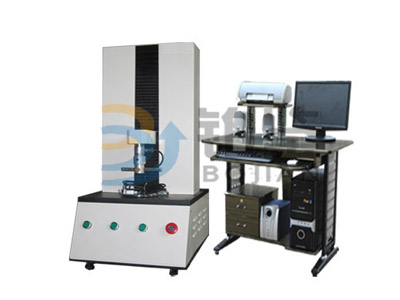

The vertical microcomputer controlled spring torsion test machine adopts the computer control operation, can carry on the fixed angle torque test; the display displays the angle torque curve of the tested parts; the real-time display angle, torque, curve, torque peak retention, test machine working state, test data storage, print test report and so on.

1, GB/T9370-1999 "technical conditions for torsion test machine"

2, JJG269-2006 "verification regulation of torsion test machine"

3. The vertical microcomputer controlled spring torsion tester is developed according to the national standards and international standards such as ISO, JIS, ASTM and DIN.

1.1 host

The mainframe uses a vertical structure. The upper end connection sensor is the fixed end, the lower end is loaded by the motor through the reducer to drive the force disc, and the torque is passed to the end of the torque to detect the torque through the sample loading. The loading system can be moved and fixed along the screw, which is used to adjust the test space.

1.2 transmission system

By adopting numerical control motors and actuators, the wide range speed continuous adjustment and uniform loading of the test process are ensured.

1.3 torque and twist angle detection

A high precision torque sensor can be used to measure the torque in two directions. The torsion angle is detected by a photoelectric encoder and the angle of the rotation is detected on the output axis to ensure the real and effective angle of display. Through the computer data acquisition and processing system, the sensor and encoder signal is displayed on the computer screen.

1.4 measurement control system:

The test force measurement control system is composed of high precision bidirectional symmetry torque sensor, measurement amplifier and A/D conversion, and the displacement measurement control system is composed of photoelectric encoder, frequency doubling shaping circuit, counting circuit and so on. Through various signal processing, the functions of computer control, data processing and display are realized.

1.5 test process

The whole test process adopts the Chinese man-machine dialogue mode of WINDOWS platform, using the window type operating system with graphical interface. The test parameters are input by the keyboard and the mouse operates the virtual button, and the whole test process is completed automatically. The screen displays torque, angular displacement, torque - angular displacement curve, and the working state of the tester.

The test results can be stored in the computer.

The A4 printer is used to print the test report.

1.6 safety protection device: overload protection shutdown.

1.7 attachments

A set of attachments can be provided according to the sample provided by the user.

Index 50Nmm 500Nmm 5000Nmm

Spring torsion test machine model vertical

Torque measurement range 50Nmm 500Nmm 5000Nmm

Torque minimum read value 0.001Nmm 0.01Nmm 0.1Nmm

The minimum reading value of the rotation angle 0.01 degrees

The relative error of indication is less than or equal to 1% (two directions of forward and reverse).

The relative error of repeatability is less than 1% (two directions of forward and reverse).

The distance between the torque disc of the force plate 70

The sample clamping method provides the mandrel according to the user spring sample.
