Small manual for all kinds of cylindrical spring spring tension and compression testing machine, disc spring, spring, spring, leaf spring, special-shaped spring precision spring tension, stress, displacement, stiffness and precision test and analysis.

JB/T 7796-1995, JB/T 7796-2005 "spring tension test machine test method"

JIS B7738-2001 "compression and tensile disc spring test machine"

1, to determine whether the spring is qualified by measuring the corresponding force value F by measuring the deformation of the spring H or H.

2, through the spring force value F, to measure the corresponding spring deformation H or height H to determine whether the spring is qualified.

3, one or more tests can be carried out to determine whether the spring is qualified.

4, it can be measured piecewise, and can calculate the stiffness (elastic coefficient) K and average stiffness of each segment.

5, sampling inspection for products, batch testing can also be carried out (mechanical parts have batch test device).

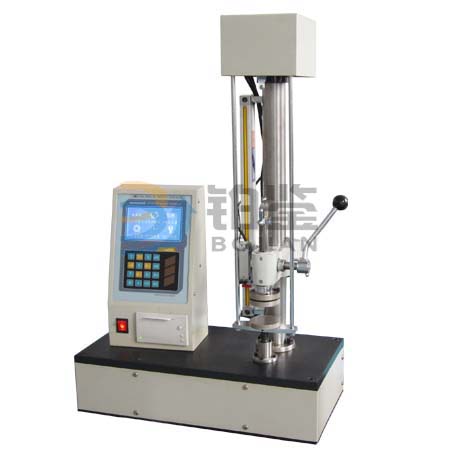

Model BJTLY-S50N, BJTLY-S100N, BJTLY-S200N

Structural gear and rack drive

Manual loading of work mode

Display mode LCD display

Data processing can be saved and printed

Range 1-100%

Test force resolution 50N/0.001N; 100N, 200N/0.01N

The relative error of the test force indication is better than that of 1%

The relative error of the repeatability of the test force is 1%

Displacement resolution 0.01mm

Displacement indication error (micron) less than + (50+0.15l)

Stretch space 220mm

Compressed space 200mm

Pressure plate diameter 60mm

The size of the test machine is about 500 x 280 x 760mm

The weight of the test machine is about 45kg

Power supply AC 220V + 10% 50Hz

Protective functional program protection

Noise 0dB (A)

The assembly, electrical and appearance conform to the national standard GB/T 2611

Packing and transportation conform to the standard JB/T 6147 of the machinery department

Test machine level 1 level
