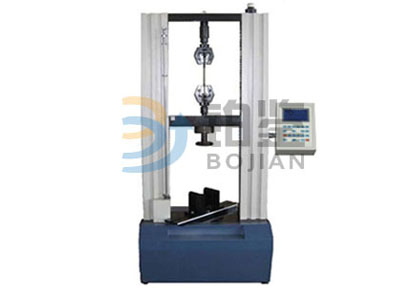

The door type digital display tension test machine is widely used in wire and cable, textile, waterproof material, non-woven fabric, safety belt, rubber, plastic, film, wire rope, steel bar, wire, metal foil, metal sheet and metal rod and other metal materials and parts and parts products to stretch, compress, bend and tear. 90 degree stripping, 180 degree peeling, shearing, adhesive force, pull-out force, elongation and other tests, and some special mechanical properties of products.

GB/ t16491 - 1996, 拉力試驗(yàn)機(jī), is 16825.1-2008

With the attached design, our company has advanced technology, beautiful appearance, convenient operation, stable and reliable performance. It is simple and convenient to operate, and is especially suitable for production line and laboratory to control the quality of products.

Model: BJDL-S

Measurable maximum force: 10KN 20KN 50KN 100KN

Force sensor: domestic / imported high-precision force sensor

Accuracy grade: grade 0.5 /1

Test force test range: 1.0%~100%FS/ 0.4%~100%FS

The precision of the force value: + 1%/ + 0.5%

The resolution of the force value: 1/200000

Displacement indication error: less than 0.5% of the indication

Displacement resolution: 0.05um

Deformation indication error: less than 0.5% of the indication value

Test speed range: 0.1 ~ 500mm/min/0.001-200mm/min

Transmission mode: stepper motor / servo motor drive screw drive

Control system: domestic drive / import driver,

Test stroke (no fixture): 700mm

Volume (W*D*H): 600x360x1850mm (optional)

Power supply, power: AC 220V + 10% 50Hz, (optional)

Weight: about 600KG/ (optional)

Automatic stop device mechanical and program control
