  • BJML bolt drawing instrument

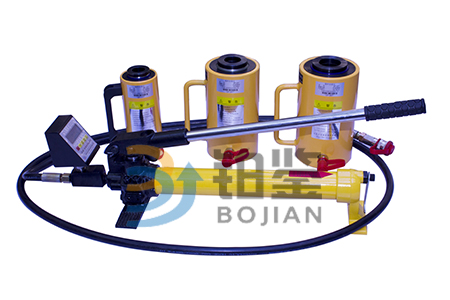

Product name:BJML bolt drawing instrument

Product model:BJML

Product range:0-1000N

Immediate consultationBJML bolt drawing instrumentOnline Message

<
>

Product introduction

Is also called the anchor tension meter, is jinan platinum as testing technology co., LTD., independent development of products, suitable for the detection of various anchor rod, anchor rope, steel bar, steel, expansion bolts, chemical anchor bolt, railway spike, and various kinds of anchoring a pull-out force of instruments and equipment, also can do the pull-out force test of the glass curtain wall, is the quality inspection units, reinforce the unit, supervision unit, university, coal mines and other necessary testing instruments.

Standard of execution

Gb50330-2013 technical specification for building slope engineering

JGJ120-2012 construction foundation pit supporting technical regulations

CECS 22:2005 technical specification for rock bolt (cable)

Gb50007-2011 architectural foundation design code

CECS22:99 "design and construction code of earth anchor bolt"

JGJ 145-2013 concrete structure post-anchorage technical specification


Functional characteristics

Technical parameter

product model

 BJML-10T

 BJML-20T

 BJML-30T

 BJML-50T

 BJML-60T

 BJML-100T

range of measurement

0-100KN

0-200KN

0-300KN

0-500KN

0-600KN

0-1000KN

Cylinder   center hole

27mm

34mm

45mm

60mm

75mm

86/95mm

Cylinder stroke

60mm

80mm

80mm

120mm

120mm

150mm

cylinder weight

 5.5kg

13kg

15kg

25kg

35kg

50/75kg

Oil cylinder reset

automatic reset

          hand reset

Manual pump storage capacity

            0.7L

           4L

Manual pump work pressure

                        63Mpa

 Instrument resolution

                        0.01KN

0.1KN

test-error

                        0.5%F.S

power supply mode

                    Three section five battery

 Display   Diagonal Size

55mmX21mm

 data   storage

200條
