Welcome to Ji'nan Bojian Testing Machine Co., Ltd.

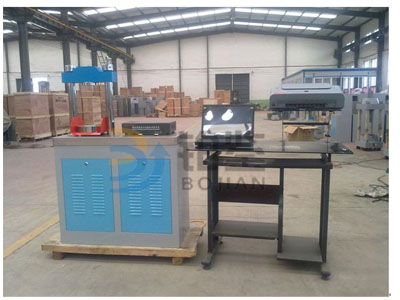

1. The oil proppant pressure testing machine adopts high precision sensor and digital display instrument, which can store, inspect and print test results.

2. The machine adopts spinning screw to adjust the compression space, which greatly speeds up the test progress.

3. Increase the anti-folding attachment, and can carry out the anti-folding test.

4. The machine needs no debugging, smoothly landing, refueling and receiving electricity can work.

5. The calibration is simple and the user can calibrate according to the instructions.

6. The machine adopts high precision sensor and computer control, which can automatically store, inspect and print the test report and print the curve.

7. The machine adopts spinning screw to adjust the compression space, which greatly speeds up the test progress.

8. The machine can design the report according to the requirements of the unit.

9. The oil proppant pressure testing machine can realize manual and automatic dual control system.

GB/ t17671-1999 test for compressive strength of cement sand, which can be widely used in concrete, tile and other 300KN pressure tests.

Maximum test force 300kN

The value of the relative error less than 1% in the test force

Loading rate from 0.3KN/S to 10KN/S

Acceleration error of + 5%

Pressure plate size [Phi] 120mm

Maximum piston stroke 60mm

Piston diameter [Phi] 130mm

Maximum oil pressure 25MPa

Rated flow rate 1.52L/min of oil pump

Motor power 0.75kW

Host size about 870 mm x 450 x 1400mm

The proppant pressure tester is about 400Kg in weight.
