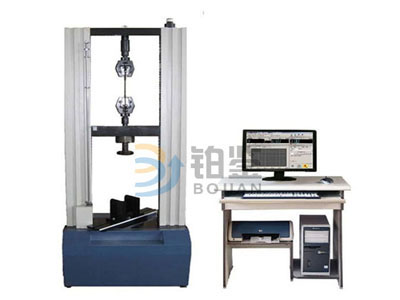

Product name：Microcomputer controlled waterproof rolling tester
Product model：
Product range：
Immediate consultation
Online Message
Microcomputer control waterproof coiled material testing machine is designed specifically for waterproofing materials testing industry, a tester, geared to the needs of waterproofing materials production enterprises, construction enterprises traffic detection, scientific research and design of electronic tensile testing machine.Meet the elastomer modified asphalt waterproofing materials GB18242-2008, polymer waterproofing materials joint shear performance standards such as GB/T328.23-2007 requirements, testing machine host and auxiliary equipment design of my company's advanced technology, beautiful appearance, convenient operation, stable and reliable performance.
GB/T328.23-2007
GB18242-2008
The main technical parameter 3000N |
Maximum test force 3000N |
Microcomputer controlled waterproofing membrane testing machine resolution 0.01N |
The relative error of the indication is + 1% |
Test space 0-500mm |
Cross beam moving speed 0.01-500mm/min |
Displacement measurement stroke 500mm |
Displacement resolution 0.01mm |
Displacement speed control precision of + 1% |
Computer controlled waterproofing membrane test machine level |
1 |
LCD content test force, displacement, peak value, running state, running speed and so on. |
The weight of the host is about 130Kg |
The size of the test machine is about 530 x 265 x 1580 mm |
The appearance should meet the requirements of GB/T2611 |
Compliance with standard requirements |
Protection function test machine has overload protection function |
Power supply AC 220V, 50Hz |
